Factory Scheduling & KPI Reporting API

Overview

The Factory Scheduling & KPI Reporting service solves job-shop production scheduling as a constraint optimization problem. A client POSTs a scheduling problem as JSON (products, routes, resources, working windows, and due dates), and the service returns a feasible schedule that minimizes total tardiness, along with a set of operational KPIs. A React frontend visualizes the result as an inline-SVG Gantt chart with per-product color coding.

The system is built for extensibility. New client input/output formats, new objective functions, and new constraints each plug in as localized changes to a single file, without touching the solver core.

Tech Stack

The Scheduling Problem

The core engine is built on OR-Tools CP-SAT, chosen for its native support for interval variables, no-overlap constraints, and optional intervals. This made it a far better fit than a MIP or a hand-rolled heuristic.

Key modeling decisions:

• Optional intervals. Each operation gets one optional interval per (resource, working window) pair, with conditional containment enforced via only_enforce_if.
• Resource selection. add_exactly_one over per-resource presence booleans.
• No-overlap. add_no_overlap per resource across all windows.
• Family-dependent changeovers. The standard disjunctive pattern: one boolean per unordered pair selects ordering, and the setup constraint for the chosen direction is enforced.
• Tardiness. tardiness >= last_op.end - due, lower-bounded at zero, summed, and minimized.
• Determinism. A single search worker and a fixed random seed yield byte-identical output across runs.

Architecture

The system enforces a strict separation between canonical types (client-agnostic, used by the solver, KPIs, and validation) and adapter types (client-specific JSON shapes). Everything downstream of the adapter speaks the same vocabulary, regardless of which client sent the request.

A POST /schedule request flows through six stages:

1. Parse. The client adapter validates the JSON shape (Pydantic) and translates it into the canonical SchedulingProblem.
2. Diagnose. Pre-solve structural checks flag common infeasibility causes (missing capabilities, windows too short, demand exceeding capacity, impossible deadlines) and short-circuit to a 422 with concrete reasons.
3. Solve. CP-SAT builds the model by walking the constraint registry, applying the selected objective, and solving. It returns a canonical Solution.
4. Compute KPIs. Tardiness, changeover count and minutes, makespan, and per-resource utilization.
5. Validate. The validator re-walks the constraint registry, independently re-checking each invariant against the final solution to catch solver bugs.
6. Format. The adapter translates the canonical solution and KPIs back into the client's response shape.

Three plug-in registries follow the same pattern: adapters/ (one file per wire format), objectives/ (one file per objective function), and constraints/ (one file per hard constraint). Adding a client, objective, or constraint is a localized change.

KPIs Reported

• Tardiness. Total minutes late across all products.
• Changeover count & minutes. Family-boundary setups on each resource.
• Makespan. Latest end minus earliest start.
• Per-resource utilization. Processing minutes over horizon-clipped calendar minutes.

Frontend

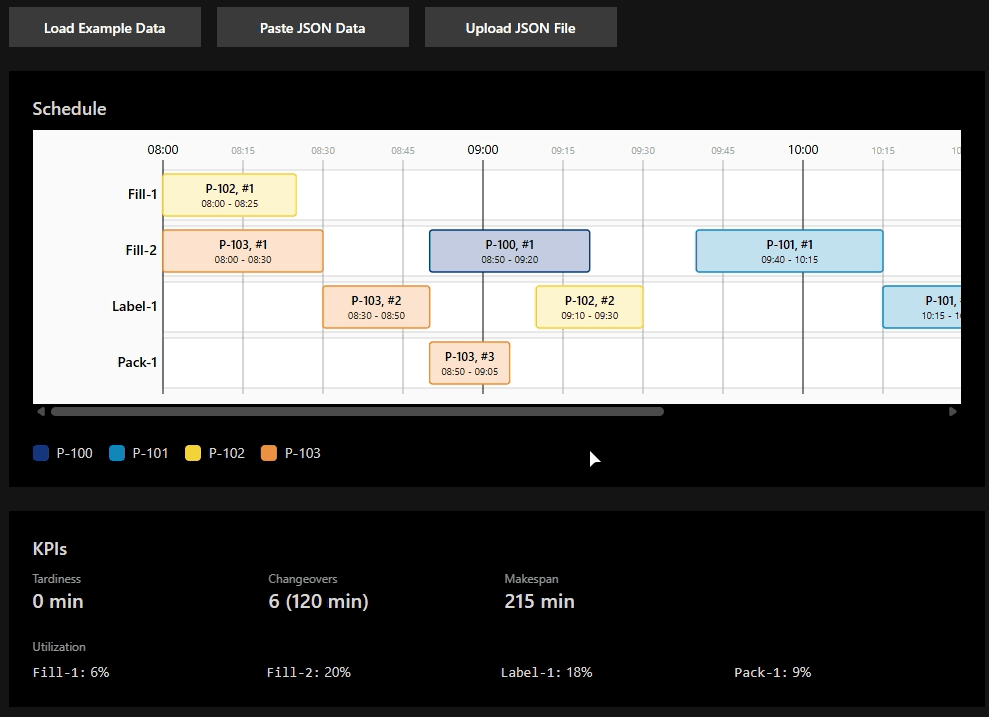

The React frontend lets a user load the spec's example problem or upload a custom JSON payload, then renders the returned schedule as an inline-SVG Gantt chart with per-product color coding. The backend is fully usable on its own, via curl, Postman, or the auto-generated Swagger UI, without ever running the frontend.

Robustness

The service distinguishes three failure modes by response shape:

• 422 infeasible. The problem genuinely cannot be solved. The why field lists concrete, actionable reasons.
• 400 bad request. Client-side input errors, such as an unknown objective mode.
• 500 invariant error. A post-solve validation failure, representing a solver or model bug rather than user input.

The test suite, run automatically in CI, covers a validation invariant test, a KPI math test, and an infeasibility test, mirroring the three tests required by the project spec.
